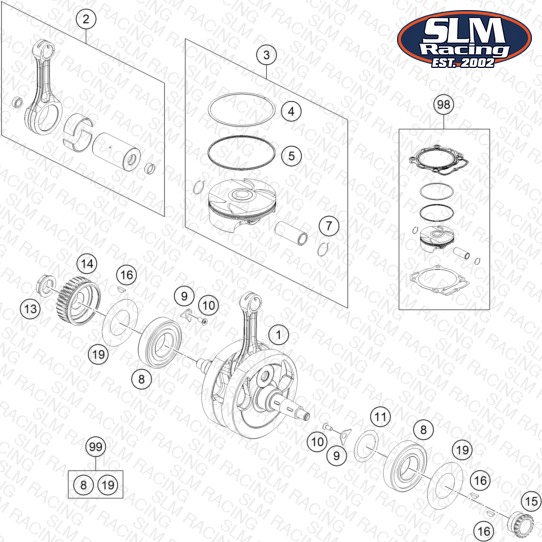

CRANKSHAFT, PISTON
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79630018100 Crankshaft cpl. | Crankshaft cpl. | 1 | — | Check availability | |
| 2 | 79630015044 CONROD REPAIR KIT | CONROD REPAIR KIT | 1 | — | Check availability | |
| 3 | 79730007000 I Piston I cpl. | Piston I cpl. | 1 | — | Check availability | View Details |
| 3 | 79730007000 II Piston II cpl. | Piston II cpl. | 1 | — | Check availability | View Details |
| 4 | 78930030000 COMPRESSION RING | COMPRESSION RING | 1 | — | Check availability | |
| 5 | 78930032000 OIL SCRAPER RING | OIL SCRAPER RING | 1 | — | Check availability | |
| 7 | 78930074000 CIRCLIP | CIRCLIP | 2 | — | Check availability | |
| 8 | 79430082000 CYLINDER ROLLER BEARING NJ207 | CYLINDER ROLLER BEARING NJ207 | 2 | — | Check availability | |
| 9 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 2 | — | Check availability | View Details |
| 10 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 2 | — | Check availability | |
| 11 | 56530081000 SHIM WASHER 36X48X0,10 | SHIM WASHER 36X48X0,10 | — | — | Check availability | |
| 11 | 56530081100 SHIM WASHER 36X48X0,15 | SHIM WASHER 36X48X0,15 | — | — | Check availability | |
| 11 | 56530081200 SHIM WASHER 36X48X0,20 STEEL | SHIM WASHER 36X48X0,20 STEEL | — | — | Check availability | |
| 11 | 56530081300 SHIM WASHER 36X48X0,30 | SHIM WASHER 36X48X0,30 | — | — | Check availability | |
| 13 | 78030029200 NUT PRIMARY WHEEL M20X1,5 | NUT PRIMARY WHEEL M20X1,5 | 1 | — | Check availability | View Details |
| 14 | 79432023231 primary gear 31t | primary gear 31t | 1 | — | Check availability | |
| 15 | 78036014300 Timing gear | Timing gear | 1 | — | Check availability | |
| 16 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 3 | — | Check availability | |
| 19 | 79430084000 BEARING SEAL | BEARING SEAL | 2 | — | Check availability | |
| 98 | 00050000259 Piston Kit I | Piston Kit I | — | — | Check availability | View Details |
| 98 | 00050000260 Piston Kit II | Piston Kit II | — | — | Check availability | View Details |
| 99 | 00050002315 CRANKSHAFT REP.KIT 450 SX-F 15 | CRANKSHAFT REP.KIT 450 SX-F 15 | — | — | Check availability | View Details |
