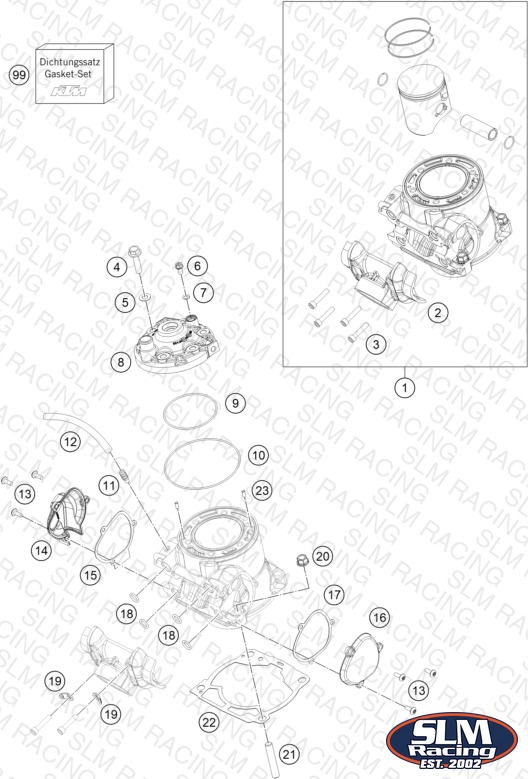

CYLINDER, CYLINDER HEAD
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 22 | 55430030025 CYLINDER BASE GASKET | CYLINDER BASE GASKET | — | — | Check availability | |
| 1 | 55630038000 CYLINDER + PISTON KPL. 17 | CYLINDER + PISTON KPL. 17 | 1 | — | Check availability | |
| 2 | 55437001000 Connection Flange | Connection Flange | 1 | — | Check availability | |
| 3 | 0912060353 AH SCREW DIN0912-M 6X35 | AH SCREW DIN0912-M 6X35 | 4 | — | Check availability | |
| 4 | 54830079000 COLLAR SCREW M 8X35 WS=13 | COLLAR SCREW M 8X35 WS=13 | 6 | — | Check availability | |
| 5 | 56530080000 CU-SEAL RING 8 X 16 X 1 | CU-SEAL RING 8 X 16 X 1 | 6 | — | Check availability | |
| 6 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | — | Check availability | |
| 7 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 8 | 55630206000 CYLINDER HEAD 300 XC | CYLINDER HEAD 300 XC | 1 | — | Check availability | View Details |
| 9 | 0770078020 O-RING 78,00X2,00 VIT. BLACK | O-RING 78,00X2,00 VIT. BLACK | 1 | — | Check availability | |
| 10 | 0770105020 O-ring 105x2 | O-ring 105x2 | 1 | — | Check availability | |
| 11 | 58336020090 VACUUM CONNECTION M 6X1 | VACUUM CONNECTION M 6X1 | 1 | — | Check availability | |
| 12 | 50430087000 preformed hose 6x10 ECO | preformed hose 6x10 ECO | 1 | — | Check availability | |
| 13 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 6 | — | Check availability | |
| 14 | 5483700700015 CONTROL COVER R/S 09 | CONTROL COVER R/S 09 | 1 | — | Check availability | View Details |
| 15 | 54837008000 GASKET FOR CONTROL COVER R/S | GASKET FOR CONTROL COVER R/S | 1 | — | Check availability | View Details |
| 16 | 5483700500015 CONTROL COVER L/S 09 | CONTROL COVER L/S 09 | 1 | — | Check availability | |
| 17 | 54837006000 GASKET FOR CONTROL COVER L/S | GASKET FOR CONTROL COVER L/S | 1 | — | Check availability | View Details |
| 18 | 0770116241 O-RING 11,3 X2,4 SILICON | O-RING 11,3 X2,4 SILICON | 4 | — | Check availability | |
| 19 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 20 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 4 | — | Check availability | View Details |
| 21 | 0835100351S STUD SCREW DIN0835-M10X35 | STUD SCREW DIN0835-M10X35 | 4 | — | Check availability | View Details |
| 22 | 55430030020 CYLINDER BASE GASKET | CYLINDER BASE GASKET | — | — | Check availability | |
| 22 | 55430030040 CYLINDER BASE GASKET | CYLINDER BASE GASKET | — | — | Check availability | |
| 22 | 55430030050 CYLINDER BASE GASKET | CYLINDER BASE GASKET | — | — | Check availability | |
| 22 | 55430030075 CYLINDER FOOT GASKET | CYLINDER FOOT GASKET | — | — | Check availability | |
| 23 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | — | Check availability | |
| 99 | 55430097000 Gasket set piston 250/300 | Gasket set piston 250/300 | — | — | Check availability | View Details |
