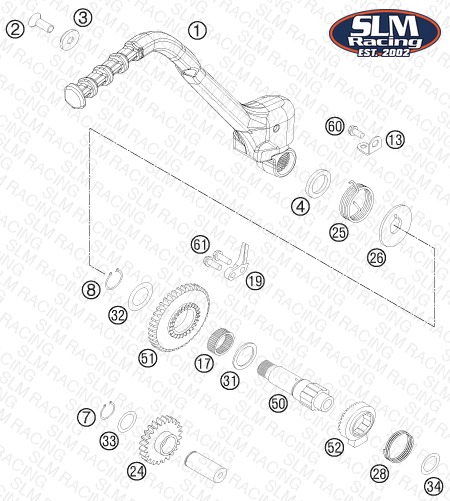

KICK STARTER
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 54633037000 WASHER 8MM GALVANIZED | WASHER 8MM GALVANIZED | 1 | $7.14 | Available | 1 |
| 4 | 0760193070 SHAFT SEAL RING 19X30X7 B | SHAFT SEAL RING 19X30X7 B | 1 | $6.59 | Available | 1 |
| 7 | 0471170010 CIRCLIP DIN0471-17X1 | CIRCLIP DIN0471-17X1 | 1 | $2.99 | Available | 1 |
| 1 | 77133070144 KICKSTARTER CPL. | KICKSTARTER CPL. | 1 | $151.68 | Available | 1 |
| 2 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 1 | $2.99 | Available | 1 |
| 8 | 0471190120 CIRCLIP DIN0471-19X1,2 | CIRCLIP DIN0471-19X1,2 | 1 | $1.99 | Available | 1 |
| 13 | 54633074000 SPRING HANGER | SPRING HANGER | 1 | $4.99 | Available | 1 |
| 17 | 0405222610 NEEDLE BEARING K 22X26X10 A | NEEDLE BEARING K 22X26X10 A | 1 | $7.91 | Available | 1 |
| 19 | 59033069000 BUMP PART | BUMP PART | 1 | $15.61 | Available | 1 |
| 24 | 54833024100 INTERMEDIATE GEAR | INTERMEDIATE GEAR | 1 | — | Obsolete | View Details |
| 25 | 54633025000 KICKSTARTER SPRING | KICKSTARTER SPRING | 1 | $11.54 | Available | 1 |
| 26 | 54633026000 DRIVING HUB | DRIVING HUB | 1 | $2.99 | Available | 1 |
| 28 | 58033028000 RATCHET GEAR SPRING 1,2 MM | RATCHET GEAR SPRING 1,2 MM | 1 | $2.99 | Available | 1 |
| 31 | 58033031000 STOP DISK 22,2 X 30 X 1,5 | STOP DISK 22,2 X 30 X 1,5 | 1 | $4.99 | Available | 1 |
| 32 | 59033080000 Shim 20x31.9x1 | Shim 20x31.9x1 | 1 | $2.41 | Available | 1 |
| 33 | 54633090000 STOP DISK 17,2X25X1 | STOP DISK 17,2X25X1 | 1 | $6.15 | Available | 1 |
| 34 | 0988172405 SHIM WASHER DIN0988-17X24X0,5 | SHIM WASHER DIN0988-17X24X0,5 | 1 | $2.99 | Available | 1 |
| 50 | 59033050100 KICKSTARTER SHAFT | KICKSTARTER SHAFT | 1 | $76.77 | Available | 1 |
| 51 | 54833051134 KICKSTARTER GEAR 34Z | KICKSTARTER GEAR 34Z | 1 | — | Obsolete | View Details |
| 52 | 59033052100 RATCHET GEAR KICKSTARTER | RATCHET GEAR KICKSTARTER | 1 | $47.73 | Available | 1 |
| 60 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 1 | $3.99 | Available | 1 |
| 61 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
