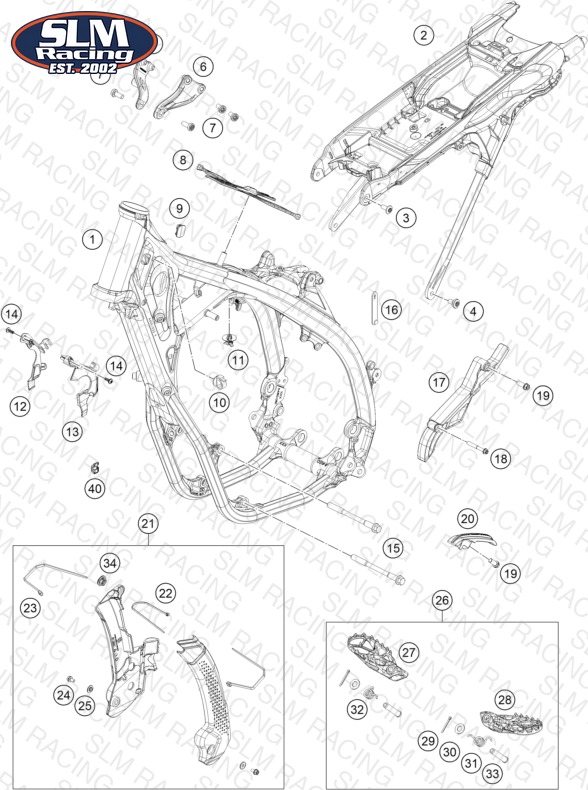

FRAME
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A46003001100HF Frame | Frame | 1 | $2438.91 | Out of Stock | Notify Me |
| 2 | A36003002000C1A Subframe | Subframe | 1 | $450.79 | Available | 1 |
| 3 | 09000008016U0 Special screw M8x16 ISA45 self | Special screw M8x16 ISA45 self | 2 | $1.99 | Available | 2 |
| 4 | 79003003000 Special screw M8X18 TORX45 SL | Special screw M8X18 TORX45 SL | 2 | $3.99 | Available | 2 |
| 5 | A46003014000 Engine brace, right | Engine brace, right | 1 | $44.21 | Available | 1 |
| 6 | A46003013000 Engine brace left | Engine brace left | 1 | $42.45 | Available | 1 |
| 7 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 6 | $6.26 | Available | 6 |
| 8 | A46007012000 Tank support rubber | Tank support rubber | 1 | $11.65 | Available | 1 |
| 9 | 79111013010 Cover control head sheet | Cover control head sheet | 1 | $2.99 | Available | 1 |
| 10 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 11 | 79711013010 Cable bracket d8 | Cable bracket d8 | 1 | $1.99 | Available | 1 |
| 12 | A46003099020 Cable bracket/throttle cable g | Cable bracket/throttle cable g | 1 | $4.99 | Available | 1 |
| 13 | A46003099010 Cable bracket | Cable bracket | 1 | $4.99 | Available | 1 |
| 14 | 0081050141 EJOT PT screw K50x14 | EJOT PT screw K50x14 | 2 | $1.99 | Available | 2 |
| 15 | 59003013000 Enginebrac. screw M10X123 WS=1 | Enginebrac. screw M10X123 WS=1 | 2 | $11.10 | Available | 2 |
| 16 | 60011093075 RUBBER CABLE TIE 75MM 03 | RUBBER CABLE TIE 75MM 03 | 1 | $6.15 | Available | 1 |
| 17 | A46003096000 Front sprocket cover | Front sprocket cover | 1 | $16.05 | Available | 1 |
| 18 | 0025060456 HH COLLAR SCREW M6X45 TX30 | HH COLLAR SCREW M6X45 TX30 | 1 | $2.99 | Available | 1 |
| 19 | 0025080206 HH collar screw M8x20 | HH collar screw M8x20 | 2 | $2.99 | Available | 2 |
| 20 | A46003053000 Chain slider below | Chain slider below | 1 | $7.47 | Available | 1 |
| 21 | A36003094000HA Frame protection set | Frame protection set | 1 | $43.77 | Available | 1 |
| 22 | 44011176200 Calbe tie 200/2,5mm black | Calbe tie 200/2,5mm black | 1 | — | Obsolete | View Details |
| 23 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 2 | $1.99 | Available | 2 |
| 24 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 2 | $1.99 | Available | 2 |
| 25 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 26 | A46003137033 Footpeg set | Footpeg set | 1 | $150.36 | Available | 1 |
| 27 | A46003141000 Footpeg right | Footpeg right | 1 | $92.83 | Available | 1 |
| 28 | A46003140000 Footpeg left | Footpeg left | 1 | $92.83 | Available | 1 |
| 29 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 30 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 31 | A46003044000 Footrest spring left | Footrest spring left | 1 | $1.99 | Available | 1 |
| 32 | A46003045000 Footrest spring right | Footrest spring right | 1 | $1.99 | Available | 1 |
| 33 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 34 | 47106003160 quick release rubber grommet | quick release rubber grommet | 1 | $4.99 | Available | 1 |
| 40 | A49003099030 Cable protection | Cable protection | 2 | $5.16 | Available | 2 |
