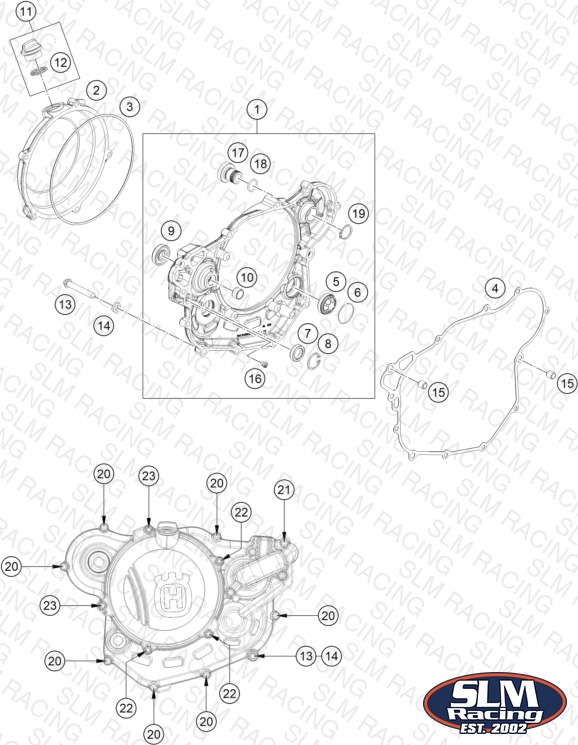

CLUTCH COVER
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79430501044 CLUTCH COVER CPL. | CLUTCH COVER CPL. | 1 | $244.74 | Available | 1 |
| 2 | 79430626100JA Outer clutch cover | Outer clutch cover | 1 | $100.42 | Available | 1 |
| 3 | 78130027000 GASKET - CLUTCH OUTER COVER | GASKET - CLUTCH OUTER COVER | 1 | $14.84 | Available | 1 |
| 4 | 79430525000 INNER CLUTCH COVER GASKET | INNER CLUTCH COVER GASKET | 1 | $26.50 | Available | 1 |
| 5 | 59030019200 OIL SIGHT GLASS | OIL SIGHT GLASS | 1 | $25.07 | Available | 1 |
| 6 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | $1.99 | Available | 1 |
| 7 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 8 | 0472024120 CIRCLIP DIN0472-24X1.2 | CIRCLIP DIN0472-24X1.2 | 1 | $1.99 | Available | 1 |
| 9 | 0760123073 SHAFT SEAL RING 12X30X7 PTFE | SHAFT SEAL RING 12X30X7 PTFE | 1 | $14.73 | Available | 1 |
| 10 | 79430057010 FRICTION BEAR. BUSH BALANC.SH. | FRICTION BEAR. BUSH BALANC.SH. | 1 | $33.87 | Available | 1 |
| 11 | 79430020033 Oil filler cap cmpl. M24x3 | Oil filler cap cmpl. M24x3 | 1 | $9.45 | Available | 1 |
| 12 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 13 | 78030080000 LOCATING SCREW | LOCATING SCREW | 1 | $4.99 | Available | 1 |
| 14 | 58030081000 CU-SEAL RING 8 X 14 X 3 | CU-SEAL RING 8 X 14 X 3 | 1 | $2.99 | Available | 1 |
| 15 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 16 | 57031523145 MAIN JET 145 | MAIN JET 145 | 1 | $9.12 | Available | 1 |
| 17 | 83033056100 KICK STARTER PLUG | KICK STARTER PLUG | 1 | $19.79 | Available | 1 |
| 18 | 0770160021 O-ring 16x2 Viton 75 | O-ring 16x2 Viton 75 | 1 | $3.99 | Available | 1 |
| 19 | 0471190120 CIRCLIP DIN0471-19X1,2 | CIRCLIP DIN0471-19X1,2 | 1 | $1.99 | Available | 1 |
| 20 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 7 | $3.99 | Available | 7 |
| 21 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 1 | $3.99 | Available | 1 |
| 22 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 3 | $3.99 | Available | 3 |
| 23 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 2 | $3.99 | Available | 2 |
