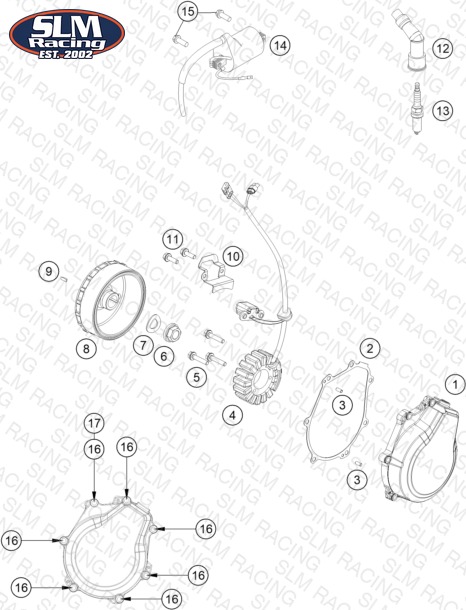

IGNITION SYSTEM
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 0025050256 HH COLLAR SCREW M5X25 ISA30 | HH COLLAR SCREW M5X25 ISA30 | 3 | — | Check availability | |
| 1 | 79430702000KA IGNITION COVER | IGNITION COVER | 1 | — | Check availability | |
| 2 | 79430040000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | — | Check availability | |
| 3 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | — | Check availability | |
| 4 | 79239104000 STATOR | STATOR | 1 | — | Check availability | View Details |
| 6 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | — | Check availability | View Details |
| 7 | 0137120000 SPRING WASHER DIN0137-B12 | SPRING WASHER DIN0137-B12 | 1 | — | Check availability | |
| 8 | 78039205000 ROTOR EXC 08 | ROTOR EXC 08 | 1 | — | Check availability | |
| 9 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | — | Check availability | |
| 10 | 79430502050 CABLE BRACKET | CABLE BRACKET | 1 | — | Check availability | |
| 11 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 2 | — | Check availability | |
| 12 | 78039090100 SPARK PLUG CONNECTOR | SPARK PLUG CONNECTOR | 1 | — | Check availability | |
| 13 | 77839093000 spark plug | spark plug | 1 | — | Check availability | |
| 14 | 58439006000 Ignition coil | Ignition coil | 1 | — | Check availability | |
| 15 | 0026060186 COLLAR SCREW M6X18 ISA30 | COLLAR SCREW M6X18 ISA30 | 2 | — | Check availability | |
| 17 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 16 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 7 | — | Check availability |
