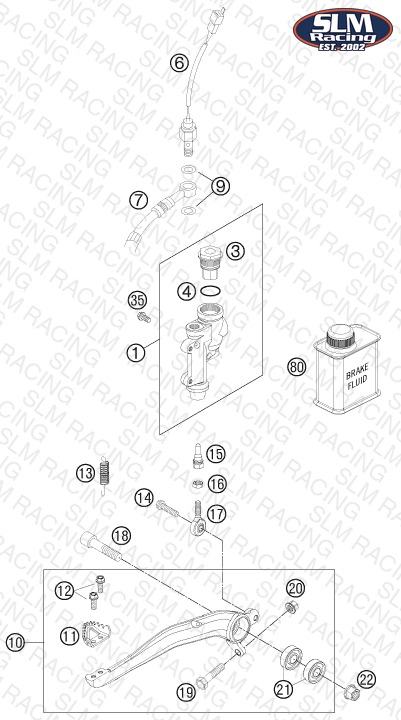

REAR BRAKE CONTROL
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77013060044 REAR BRAKE CYLINDER CPL.SX 09 | REAR BRAKE CYLINDER CPL.SX 09 | 1 | $360.13 | Available | 1 |
| 3 | 54813062100 REAR BRAKE CYL. COVER CPL. 04 | REAR BRAKE CYL. COVER CPL. 04 | 1 | $53.01 | Available | 1 |
| 4 | 54813063000 FOOT-BRAKE CYL. GASKET SX 03 | FOOT-BRAKE CYL. GASKET SX 03 | 1 | $11.21 | Available | 1 |
| 6 | 50311051100 BRAKE LIGHT SWITCH REAR '98 | BRAKE LIGHT SWITCH REAR '98 | 1 | $43.44 | Available | 1 |
| 7 | 77213070100 BRAKE HOSE REAR | BRAKE HOSE REAR | 1 | $116.37 | Available | 1 |
| 9 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | $2.99 | Available | 2 |
| 10 | 77213050044 FOOT BRAKE LEVER CPL. | FOOT BRAKE LEVER CPL. | 1 | $146.84 | Available | 1 |
| 11 | 54813051000 STEP PLATE FOR BRAKE LEVER | STEP PLATE FOR BRAKE LEVER | 1 | $12.97 | Available | 1 |
| 12 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | $3.99 | Available | 2 |
| 13 | 54603062100 RETURN SPRING FOR BRAKE LEVER | RETURN SPRING FOR BRAKE LEVER | 1 | $7.69 | Available | 1 |
| 14 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $2.99 | Available | 1 |
| 15 | 54813056000 PUSH ROD L=28MM 03 | PUSH ROD L=28MM 03 | 1 | $18.69 | Available | 1 |
| 16 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 17 | 54813055000 SWIVEL HEAD KA6 03 | SWIVEL HEAD KA6 03 | 1 | $23.42 | Available | 1 |
| 18 | 0032100406S AH-COLLAR SCREW M10X40 ISA45 | AH-COLLAR SCREW M10X40 ISA45 | 1 | $4.99 | Available | 1 |
| 19 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 1 | $3.99 | Available | 1 |
| 20 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | $9.23 | Available | 1 |
| 21 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | $14.51 | Available | 2 |
| 22 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 35 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 2 | $3.99 | Available | 2 |
| 80 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | $13.99 | Available | 1 |
