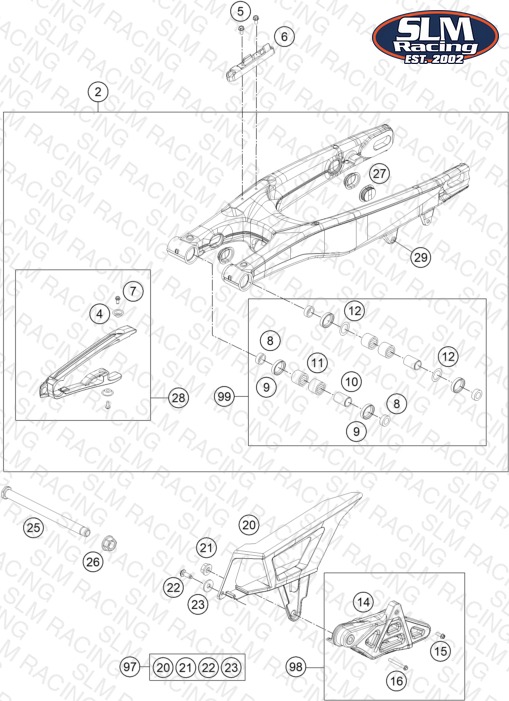

SWING ARM
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 6 | 76504042000 BRAKE LINE GUIDE 08 | BRAKE LINE GUIDE 08 | 1 | $6.15 | Available | 1 |
| 7 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 | SPECIAL SCREW M6X13 WS=8 10.9 | 2 | $2.99 | Available | 2 |
| 2 | 81304030044 SWING ARM CPL. | SWING ARM CPL. | 1 | — | Obsolete | View Details |
| 4 | 77304066050 chain slider bushing | chain slider bushing | 2 | $1.99 | Available | 2 |
| 5 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 2 | $2.99 | Available | 2 |
| 8 | 54804034000 Bucket f. shaft seal ring 03 | Bucket f. shaft seal ring 03 | 4 | $15.83 | Available | 4 |
| 9 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 10 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | $11.87 | Available | 2 |
| 11 | 0618222812 Needle bushing HK2212V 22/28/1 | Needle bushing HK2212V 22/28/1 | 4 | $11.54 | Available | 4 |
| 12 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 14 | 78104070100 Chain cuide EXC | Chain cuide EXC | 1 | $64.67 | Available | 1 |
| 15 | 59009062019 SPECIAL SCREW M6X19 WS=8 10.9 | SPECIAL SCREW M6X19 WS=8 10.9 | 1 | $2.99 | Available | 1 |
| 16 | 0025060456 HH COLLAR SCREW M6X45 TX30 | HH COLLAR SCREW M6X45 TX30 | 1 | $2.99 | Available | 1 |
| 20 | 78104060000 CHAINGUARD | CHAINGUARD | 1 | $12.20 | Available | 1 |
| 21 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | $2.99 | Available | 1 |
| 22 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 1 | $2.99 | Available | 1 |
| 23 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 1 | $2.99 | Available | 1 |
| 25 | 77304037000 SWINGARM BOLT M16X1,5 07 | SWINGARM BOLT M16X1,5 07 | 1 | $66.65 | Available | 1 |
| 26 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | $2.99 | Available | 1 |
| 27 | 77204041000 Locking cap swingarm | Locking cap swingarm | 4 | $4.99 | Available | 4 |
| 28 | 77204066010 Chain guard cpl. | Chain guard cpl. | 1 | $27.49 | Available | 1 |
| 29 | 54603055051 PRESS IN NUT M6 STEEL ZINC | PRESS IN NUT M6 STEEL ZINC | 1 | $2.99 | Available | 1 |
| 97 | 78104060010 CHAIN PROTECTION KIT EXC 12-14 | CHAIN PROTECTION KIT EXC 12-14 | — | $12.86 | Available | 1 |
| 98 | 78104070010 CHAIN GUIDE KIT EXC 14-15 | CHAIN GUIDE KIT EXC 14-15 | — | $54.11 | Available | 1 |
| 99 | 59404230110 SWINGARM-REPAIR KIT 05-14 | SWINGARM-REPAIR KIT 05-14 | — | $91.95 | Available | 1 |
