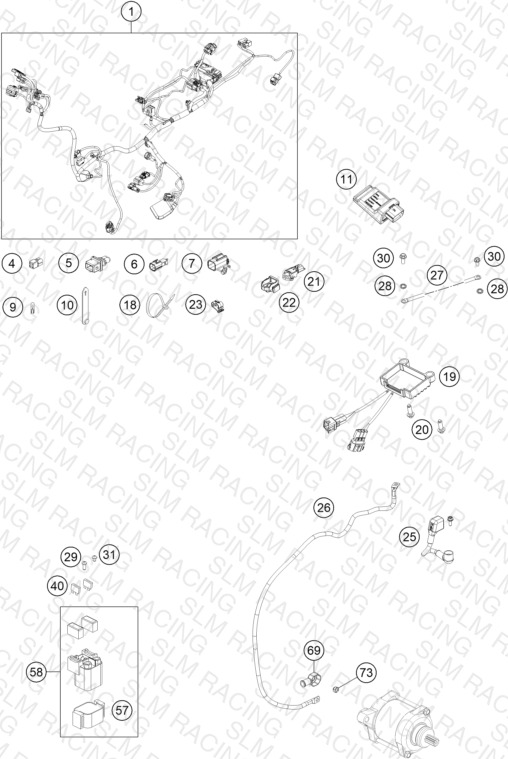

WIRING HARNESS
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A45011175000 Main wiring harness US | Main wiring harness US | 1 | — | Check availability | |
| 4 | 000700000AN01 Dummy plug 4-pins | Dummy plug 4-pins | 1 | — | Check availability | |
| 5 | 000700000LV001 Dummy plug LV 2p/sealed | Dummy plug LV 2p/sealed | 1 | — | Check availability | |
| 6 | 000700000BH002 Dummy plug magnetic pump 2 str | Dummy plug magnetic pump 2 str | 1 | — | Check availability | |
| 7 | 000700000OU002 Plug cap | Plug cap | 1 | — | Check availability | |
| 9 | 49111425200 BULB 12V 2,3W (W2X4,6D) | BULB 12V 2,3W (W2X4,6D) | 2 | — | Check availability | |
| 10 | 60011093045 RUBBER CABLE TIE 45MM 03 | RUBBER CABLE TIE 45MM 03 | 1 | — | Check availability | |
| 10 | 60011093060 RUBBER CABLE TIE 60MM 03 | RUBBER CABLE TIE 60MM 03 | 2 | — | Check availability | |
| 10 | 60011093075 RUBBER CABLE TIE 75MM 03 | RUBBER CABLE TIE 75MM 03 | 1 | — | Check availability | |
| 11 | A49011033033 Offroad-control-unit 1.0 | Offroad-control-unit 1.0 | 1 | — | Check availability | |
| 18 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 0 | — | Check availability | |
| 18 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 0 | — | Check availability | |
| 18 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 0 | — | Check availability | |
| 19 | A49011034000 Voltage regulator | Voltage regulator | 1 | — | Check availability | |
| 20 | 0023060123 COLLAR SCREW M6X12 TX | COLLAR SCREW M6X12 TX | 2 | — | Check availability | |
| 21 | A45041075000 crank case pressure sensor | crank case pressure sensor | 1 | — | Check availability | |
| 22 | A45041075010 Rubber band, crankcase pressur | Rubber band, crankcase pressur | 1 | — | Check availability | |
| 23 | 83013026000 Line guide | Line guide | 1 | — | Check availability | |
| 25 | A46011059050 Battery cable cmpl. | Battery cable cmpl. | 1 | — | Check availability | |
| 26 | A44011059000 Starter cable | Starter cable | 1 | — | Check availability | |
| 27 | 75011097100 Ground wire | Ground wire | 1 | — | Check availability | |
| 28 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 3 | — | Check availability | |
| 29 | 0738060167 Oval head screw AH socket M6x1 | Oval head screw AH socket M6x1 | 1 | — | Check availability | |
| 30 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | — | Check availability | |
| 31 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | — | Check availability | |
| 40 | 58011109120 Plug-in fuse, big 20A | Plug-in fuse, big 20A | 2 | — | Check availability | |
| 57 | 58211058050 BRACKET RUBBER F.STARTRELAY 07 | BRACKET RUBBER F.STARTRELAY 07 | 1 | — | Check availability | |
| 58 | 58211058000 Starter reley 12V 99 | Starter reley 12V 99 | 1 | — | Check availability | |
| 69 | 77240099000 Protection cap for starter eng | Protection cap for starter eng | 1 | — | Check availability | |
| 73 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | — | Check availability |
