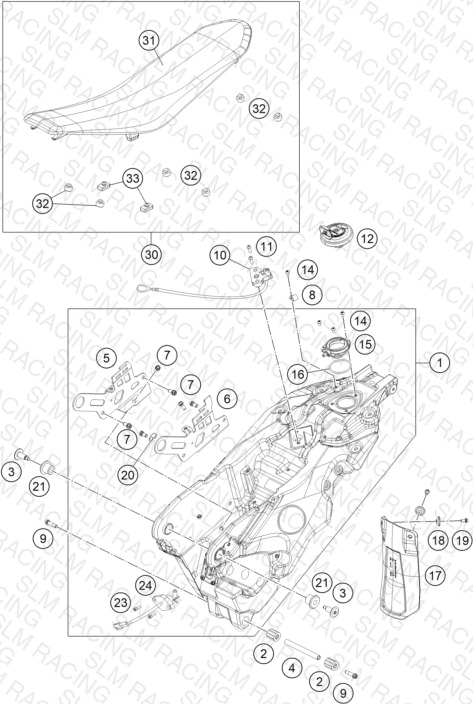

TANK, SEAT
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76907013044 Fuel tank cpl. | Fuel tank cpl. | 1 | — | Check availability | |
| 2 | 76507065100 RUBBER BUSHING 11,7X24,7 L=26 | RUBBER BUSHING 11,7X24,7 L=26 | 2 | — | Check availability | |
| 3 | 76507060300 Bearing sleeve, top | Bearing sleeve, top | 2 | — | Check availability | |
| 4 | 76507061100 Bearing sleeve, bottom | Bearing sleeve, bottom | 1 | — | Check availability | |
| 5 | 27007028000 RIGHT FUEL-TANK SUPPORT PLATE | RIGHT FUEL-TANK SUPPORT PLATE | 1 | — | Check availability | |
| 6 | 27007027100 Retaining bracket tank left | Retaining bracket tank left | 1 | — | Check availability | |
| 7 | 0025080166 HH COLLAR SCREW M8X16 TX40 | HH COLLAR SCREW M8X16 TX40 | 6 | — | Check availability | |
| 8 | 57013070000 PVC-CLAMP 7/16'' HEYCO 3377 | PVC-CLAMP 7/16'' HEYCO 3377 | 1 | — | Check availability | |
| 9 | 0025080306S HH COLLAR SCREW M8X30 TX40 | HH COLLAR SCREW M8X30 TX40 | 2 | — | Check availability | |
| 10 | 76507050000 SEAT LOCK | SEAT LOCK | 1 | — | Check availability | |
| 11 | 0738060185S oval head screw M6x18 A2-70 S | oval head screw M6x18 A2-70 S | 2 | — | Check availability | |
| 12 | A63407008000 BASE TANK CAP WITHOUT KEY | BASE TANK CAP WITHOUT KEY | 1 | — | Check availability | |
| 14 | 58605083010 SCREW TORX M5X10 05 | SCREW TORX M5X10 05 | 4 | — | Check availability | |
| 15 | 76507108050 Closure flange | Closure flange | 1 | — | Check availability | |
| 16 | 0770050030 O-ring 50.00X3.00 VITON | O-ring 50.00X3.00 VITON | 1 | — | Check availability | |
| 17 | 76506010100 Splash protection | Splash protection | 1 | — | Check availability | |
| 18 | 72210079100 Supporting shell | Supporting shell | 2 | — | Check availability | |
| 19 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 2 | — | Check availability | |
| 20 | 27007053000 CLAMP FOR SEAT LOCK LINKAGE | CLAMP FOR SEAT LOCK LINKAGE | 1 | — | Check availability | |
| 21 | 76507066000 RUBB.BEAR.BOX 12x24x35 L=24,5 | RUBB.BEAR.BOX 12x24x35 L=24,5 | 2 | — | Check availability | |
| 23 | 0912050163 AH collar screw DIN 912 M5x16 | AH collar screw DIN 912 M5x16 | 2 | — | Check availability | |
| 24 | 58207080100 GAS-LEVEL SENSOR ADV. 2006 | GAS-LEVEL SENSOR ADV. 2006 | 1 | — | Check availability | |
| 30 | A63407540000FB Seat Enduro cpl. US | Seat Enduro cpl. US | 1 | — | Check availability | |
| 31 | A63407040050FB Seat cover | Seat cover | 1 | — | Check availability | |
| 32 | 76907040045 Seat rubber | Seat rubber | 6 | — | Check availability | |
| 33 | 28503002010 Rubber support | Rubber support | 2 | — | Check availability |
