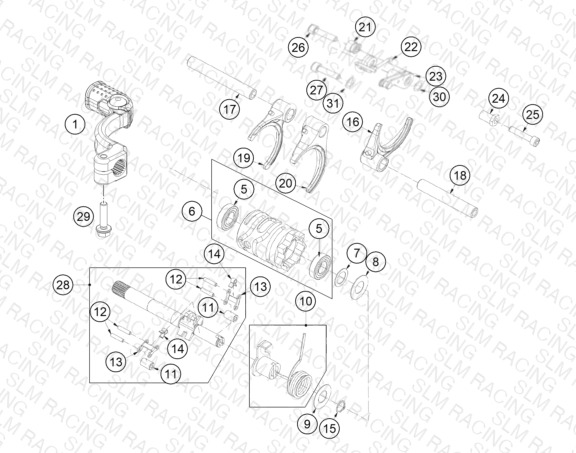

SHIFTING MECHANISM
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | MT280238032 Bearing gear shift drum | Bearing gear shift drum | 2 | $28.48 | Available | 2 |
| 6 | MT280238031 Shift roller | Shift roller | 1 | $134.30 | Available | 1 |
| 7 | T4001218 Washer | Washer | 1 | $2.99 | Available | 1 |
| 8 | T4001224 Washer 12,2x24x0,5 | Washer 12,2x24x0,5 | 1 | $4.99 | Available | 1 |
| 9 | T4011024 Washer 10,2x24x0,5 | Washer 10,2x24x0,5 | 2 | $3.99 | Available | 2 |
| 10 | MT280238037CT Spring kit shift shaft | Spring kit shift shaft | 1 | $82.27 | Available | 1 |
| 11 | MT280238040 Detent roller | Detent roller | 2 | $6.15 | Available | 2 |
| 12 | MT280238048 NEEDLE 3X13.8 SHIFTER | NEEDLE 3X13.8 SHIFTER | 4 | $9.34 | Available | 4 |
| 13 | MT280238036 Bracket | Bracket | 2 | $11.10 | Available | 2 |
| 14 | MT280238039 Spring plate shift roller | Spring plate shift roller | 2 | $3.99 | Available | 2 |
| 15 | M03314011 Circlip 10mm waterpump | Circlip 10mm waterpump | 1 | $1.99 | Available | 1 |
| 16 | MT47000GG-CSV-1 SHIFT FORK PRIMARY | SHIFT FORK PRIMARY | 1 | $83.15 | Available | 1 |
| 17 | MT280238044 Shift rail shaft | Shift rail shaft | 1 | $15.94 | Available | 1 |
| 18 | MT280238045 Shift rail shaft | Shift rail shaft | 1 | $13.74 | Available | 1 |
| 19 | MT280238007 Shift fork 2./4. | Shift fork 2./4. | 1 | $78.42 | Available | 1 |
| 20 | MT280238008 Shift fork 1./3. | Shift fork 1./3. | 1 | $78.97 | Available | 1 |
| 21 | MT280238049 Mechanical stop shift drum | Mechanical stop shift drum | 1 | $4.99 | Available | 1 |
| 22 | MT280238034 Spring gear shift lever | Spring gear shift lever | 1 | $4.99 | Out of Stock | Notify Me |
| 23 | MT280238033 SHIFT ARM DRUM POSITION | SHIFT ARM DRUM POSITION | 1 | $34.64 | Available | 1 |
| 24 | MT280238050 Excentric adjuster | Excentric adjuster | 1 | $9.34 | Available | 1 |
| 25 | T0305025 Screw 5x25 | Screw 5x25 | 3 | $1.99 | Available | 3 |
| 26 | T0305020 Screw 5x20 | Screw 5x20 | 5 | $1.99 | Available | 5 |
| 27 | T0305030 Screw M5x30 | Screw M5x30 | 1 | $1.99 | Available | 1 |
| 28 | MT280238043 Shifting shaft cpl. | Shifting shaft cpl. | 1 | $177.75 | Available | 1 |
| 29 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $2.99 | Available | 1 |
| 30 | T4001605 Washer 16x5x1 | Washer 16x5x1 | 1 | $1.99 | Available | 1 |
