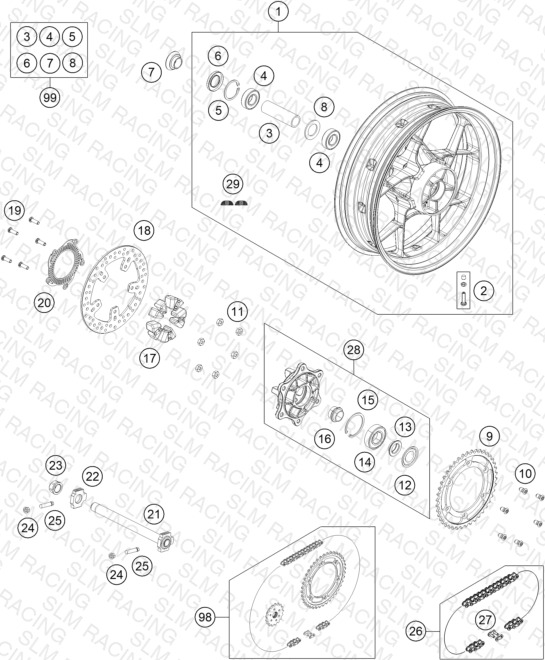

REAR WHEEL
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 75310011000 BEARING SPACER TUBE L=106MM 07 | BEARING SPACER TUBE L=106MM 07 | 1 | $25.18 | Available | 1 |
| 4 | 0625062052 Grooved ball bear. 6205-2RSHC3 | Grooved ball bear. 6205-2RSHC3 | 2 | $36.29 | Available | 2 |
| 5 | 0472052200 CIRCLIP DIN0472-52X2 | CIRCLIP DIN0472-52X2 | 1 | $3.99 | Available | 1 |
| 6 | 0760305271 Radial shaft seal 30X52X7 | Radial shaft seal 30X52X7 | 1 | $6.15 | Available | 1 |
| 7 | 60110013000 SPACER BUSH. REAR WHEEL R/S 06 | SPACER BUSH. REAR WHEEL R/S 06 | 1 | $27.05 | Available | 1 |
| 8 | 60010015000 Spacer ring 03 | Spacer ring 03 | 1 | $12.42 | Available | 1 |
| 9 | 75010051042 SPROCKET STEALTH 42T 07 | SPROCKET STEALTH 42T 07 | — | $82.49 | Available | 1 |
| 10 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 1 | $2.99 | Available | 1 |
| 21 | 75310085144 WHEEL SPINDLE CPL. | WHEEL SPINDLE CPL. | 1 | $92.83 | Available | 1 |
| 22 | 60010084000 Chain tension adjuster, right, | Chain tension adjuster, right, | 1 | $26.83 | Available | 1 |
| 23 | 60010086000 COLLAR NUT WH. SPINDLE REAR 03 | COLLAR NUT WH. SPINDLE REAR 03 | 1 | $17.15 | Available | 1 |
| 24 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | $2.99 | Available | 2 |
| 25 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | $6.15 | Available | 2 |
| 26 | 76910065118 chain DID 118 roll | chain DID 118 roll | 1 | $151.57 | Available | 1 |
| 27 | 76910066000 Rivet link chain DID 520 VP2-T | Rivet link chain DID 520 VP2-T | 1 | $23.53 | Available | 1 |
